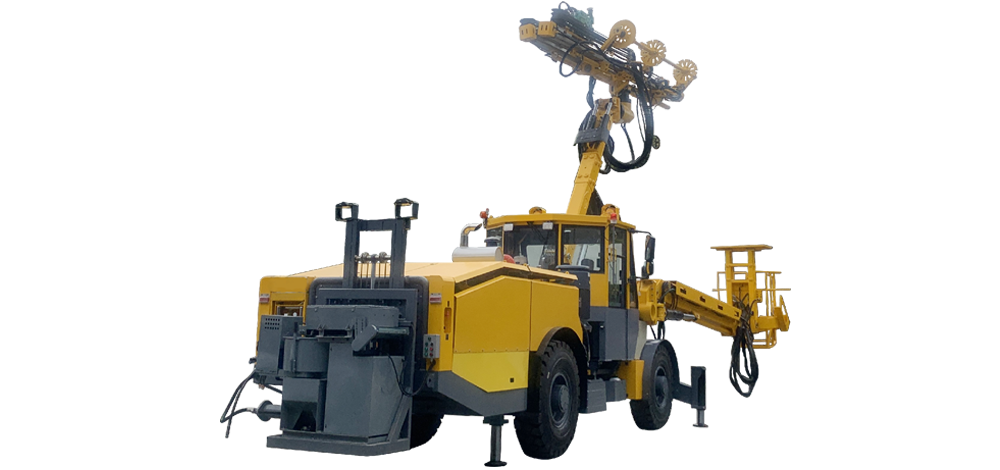

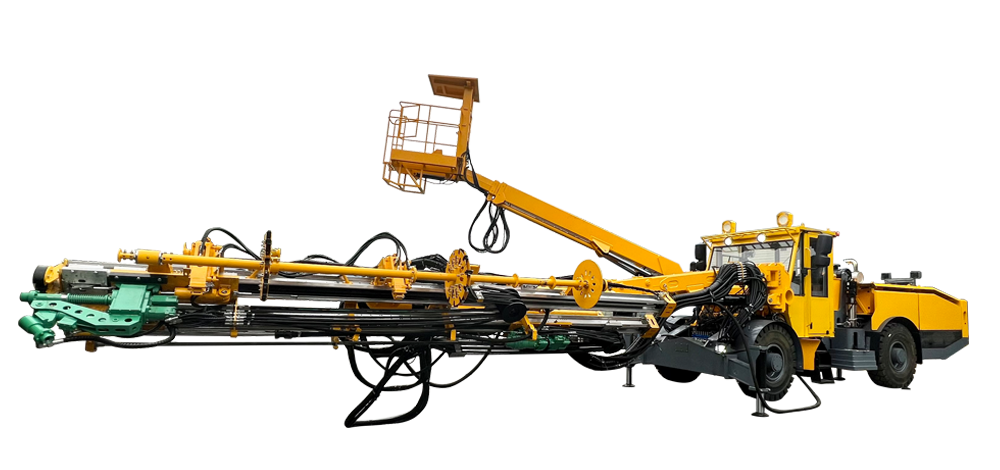

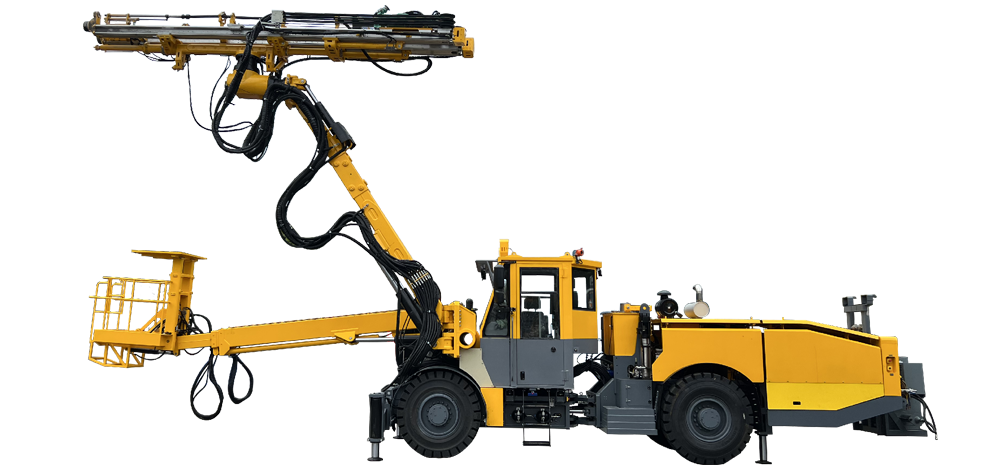

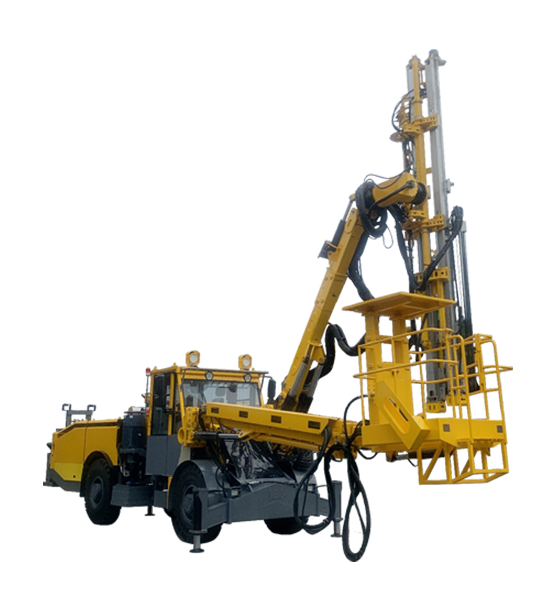

DWS901鉆注錨一體化設備
分享
隧道鉆爆法施工隧道支護設備，廣泛應用于鐵路、公路、水利、冶金等領域各種隧道巷道，涵洞等施工中的支護作業
13800000000
特點介紹
| 參數Parameter | DWS901 |
|---|---|
| 整機尺寸（長*寬*高）/Overall dimensions (length * width * height) | 15900*2490*3200 |
| 徑向錨桿適用斷面（b*h）/Applicable section for radial anchor rod (b * h) | 18.5*11m |
| 鉆進深度/Drilling depth | 4500mm |
| 適用錨桿長度/ Anchor rod length | 4500mm (Build-in-resin bolt 4000mm) |
| 主電機功率/Main motor power | 55kw |
| 液壓油箱容量/Hydraulic oil tank capacity | 350L |
| 整機重量/Overall weight | 33000kg |
| 鉆孔工位/ Drilling station | |
| 鑿巖機功率/ Rock drill power | 18kw |
| 推進補償/ Propulsion compensation | 850mm |
| 鑿孔直徑/ Drilling hole diameter | Φ41~89mm |
| 鉆桿長度/ Drilling pipe length | 4915mm |
| 錨桿工位/ Acnhor rod station | |
| 一次裝桿數量/ Number of anchor rods loaded at one time | 9pcs |
| 錨桿動力頭/ Anchor rod power head | MG30 |
| 預應力功能/ Prestressed function | 有/ Yes |
| 推進補償/ Propulsion compensation | 850mm |
| 樹脂工位/ Resin capsule station | |
| 樹脂卷/ Resin capsule | Φ35mm |
| 推送方式/ Push method | 氣送/ Gas push |
| 控制方式/ Control mode | 手動閥控制/ Manual valve control |
| 鉆臂/ Drilling arm | |
| 水平回轉/ Horizontal rotation | 360° |
| 豎直回轉/ Vertical rotation | 360° |
| 伸縮/ Stretch | 1800mm |
| 底盤/Chassis | |
| 柴油機功率/ Diesel engine power | 220HP/164kw |
| 轉向/Turning direction | ±38° |
| 輪胎規格/ Tire specification | 14.0*R24 |
| 后橋擺角/ Rear axle swing angle | ±8° |
| 接近角/離去角/ Approach angle/ departure angle | 21°/16° |
| 行走速度/ Travel speed | 水平路面/ Level pavement > 14 (km/h) |
| 最小離地間隙/ Minimum ground clearance | 370mm |
| 行車制動/ Driving brake | 濕式橋、液壓制動/ Wet bridge, hydraulic brake |
| 燃油箱容積/ Fuel tank volume | 160L |
| 電氣系統/ Electrical system | |
| 總功率/Total engine power | 67.9kw |
| 供電電壓/Voltage | 380v |
| 電機轉速/ Motor speed | 1480r/min |
| 蓄電池/Battery | 2*12v/120Ah |
| 行車照明燈/電氣系統/ Driving light/ electrical system | 24v |
| 工作照明燈/Work light | 220v |
| 卷線長度/ Cable coil length | 80m |
| 供氣系統/ Gas supply system | |
| 流量/Flow rate | 0.85m3/min |
| 工作氣壓/Operation air pressure | 0.8Mpa |
| 供水系統/ Water supply system | |
| 流量/Flow rate | 70L/min |
| 工作水壓/Working water pressure | 0.8~1.5Mpa |
| 工作平臺/ Work platform | |
| 工作范圍/ Work section (b*h) | 15*12.5m |
| 承載能力/ Bearing capacity | 400Kg |
| 注漿系統/ Grouting system | |
| 出漿排量/ Cement discharge capacity | 1.8m3/h |
| 注漿壓力/ Grouting pressure | 1~4Mpa |
| 電機功率/ Motor power | 2.2kW (注漿/ grouting), 2.2kW (攪拌/ mixing) |
| 自動制漿系統/ Automatic pulping system | 有/ Yes |
| 料斗容積/ Hopper volume | 130L |
